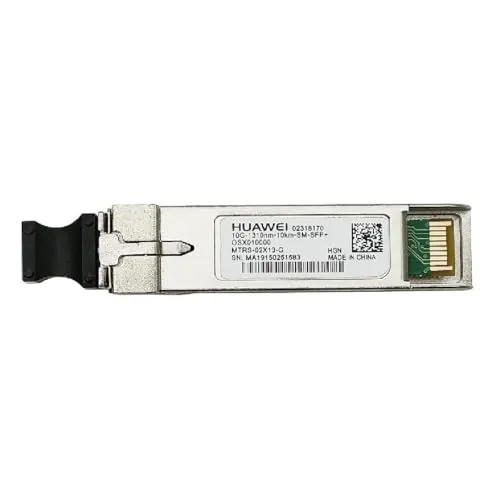

Huawei 02318170 Optical Transceiver SFP+ 10G

Huawei 02318170 Optical Transceiver SFP+ 10G

neueste Technologie Für Profis und Hobbyisten gleichermaßen geeignet Marke: Huawei

Huawei - 40823294 - SFP+ OSX010000 Transceiver - Neu & OVP

Produktart: Transceiver

Huawei eKit Transceiver OSX010000 Single-Mode 10G SFP+ LC 10km

Part Number 2318170 Model OSX010000 Description Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) Level-1 category 10GE SFP+ Optical Modules Module name OSX010000 Connector type LC/DLC Optical fiber type SMF Form factor SFP+ Transmission rate [bit/s] 10G Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 μm): 10 km Application standard/Type 10GBASE-LR Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F) Type of the end face of the fiber ceramic ferrule PC or UPC DDM options Supported Center wavelength [nm] 1310 Overload power (AVG) [dbm] 0.5 Minimum Tx optical power (AVG) [dbm] -8.2 Maximum Tx optical power (AVG) [dbm] 0.5 Minimum extinction ratio [db] 3.5 Rx sensitivity (OMA) [dbm] -12.6

Huawei OSX010000 SFP+ Modul, LR (02318170)

Huawei OSX010000 SFP+ Modul, LR (02318170)
